Description

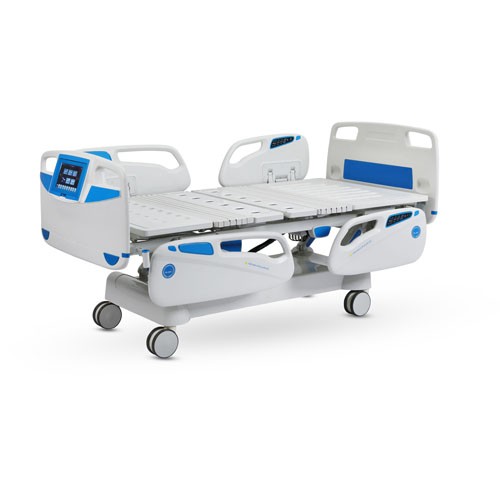

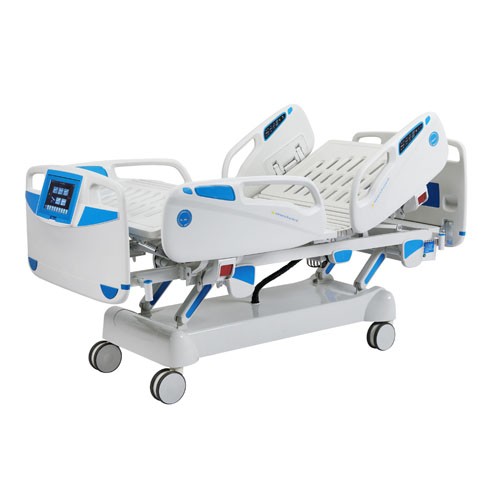

ICU Multi-function Electric Bed With Weighing Scale
Model No: BDMS01B
DIMENSION: 2260mm(L)*1100mm(W)*535mm-720mm
MATERIAL: STEEL FRAMEWORK, TOP CLASS ABS & PP PLASTIC
BED BORAD: 1940mm (L)* 900mm(W)
NET WEIGHT: 158KGS
LOAD CAPACITY: < 250KGS
CASTOR: Φ150mm universal (Central Locking).Electronic brake & un-brake.
FEATURES :* With easily operated touching switch, solve the problem of limited service life of mechanical keypad and keypad invalid due to constantly operating

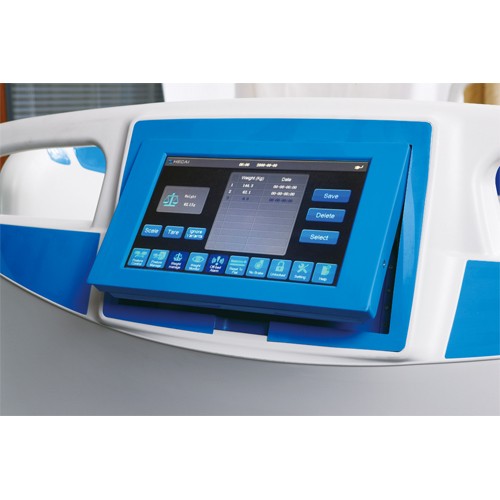

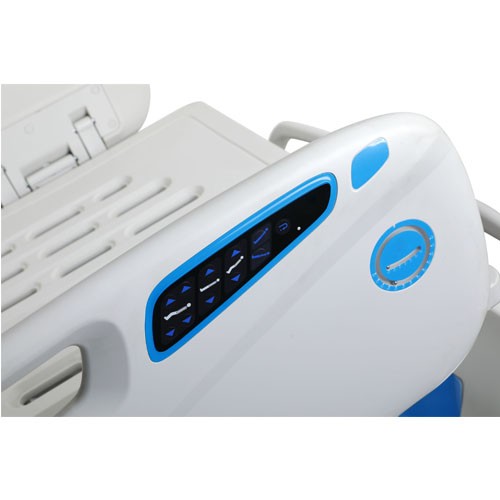

* Insert touching switch in the 2pcs side rail at the head side, for patient adjust bed posture easily. A 10.2" touching screen at the foot board,display all the bed posture figures, with Patient Lock-Out system, for nursing person's operation
* Back-rest (0-65o±5o), Foot-rest (0-40o±5o), Hi-Low(720mm-535mm),Trendelenburg(10) & Rev. Trendelenburg (10),all achieved by electrically controlled, with indicator light to show the work statusBack&Leg linkage movement,back- rest and leg re-rest can up/down at the same time ,supply convenient operation.
* Bed position data can be stored and call out
* Function of weight scale, weight data can be stored and managed
* Off-bed alarming
* With the "reset" button to make the bed be flat from any position
* Backup Battery, for emergency power failure
* Detachable head & foot board in PP plastic, can be fixed when assembled
* 4 pcs drop-down protective railing with angle indicators, controlled by gas spring
* Bed board with soft connection, make the bending of the bed board more smooth to let the patient feel more comfortable when lying in the bed
* Central brake castors , brake and un-brake controlled by electric operation
* IV pole mount bracket, at 4 corners of the bed frame
* Standard accessory: I.V. pole
