Description

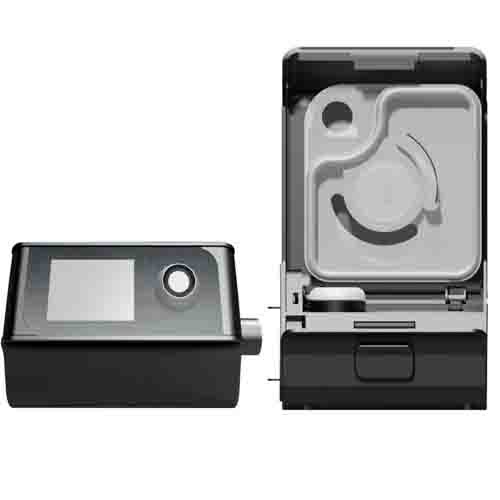

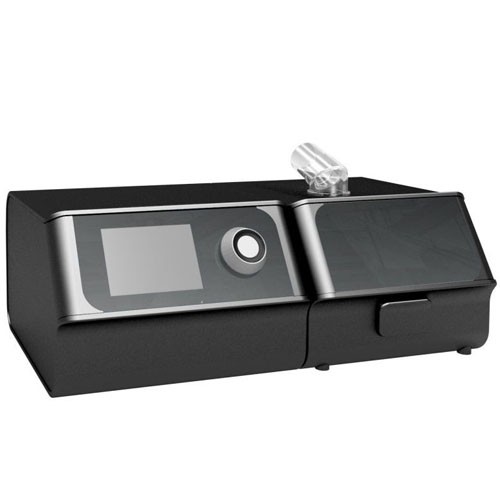

Bilevel Positive Airway Pressure with Multiple Mode (BPAP)
Application :
BPAP is mainly used for treating obstructive sleep apnea-hypopnea syndrome (OSAHS) and it is not for patient life support.
Features:
- Work mode : CPAP, S, S/T, T
- Air leak compensation: Dynamic monitoring of the pressure compensation/ Dynamic monitoring of flow compensation.
- Large color LCD display: It is very convenient to see the setting parameters and statistical data.
- It can display waveform of breathing air and pressure in real time.
- Equipped with Multi-parameter Alarm, Mask off alarm, suffocation alarm, high respiratory rate alarm, low respiratory rate alarm.
| Technical parameters : | |
|---|---|
| Inspiratory pressure (IPAP) : | 4 cmH2O ~ 25 cmH2O |
| Expiratory pressure (EPAP) : | 4 cmH2O ~ 20 cmH2O |
| Continuous positive airway pressure (CPAP) : | 4 cmH2O ~ 20 cmH2O |
| Pressure delay rise time : | 0 min ~ 60 min |
| Pressure rise time : | automatic adjustment, 0.1 s ~ 0.6 s |
| Respiratory rate : | 2 ~ 40 bPM |
| Inspiratory time : | 0.0 s ~ 3.0 s |
| Inspiratory sensitivity : | automatic adjustment, 1,2,3 |
| Expiratory sensitivity : | automatic adjustment, 1,2,3 |
| Comfort : | Off, 1,2,3 |
| Humidifier : | 0-5 |
