Description

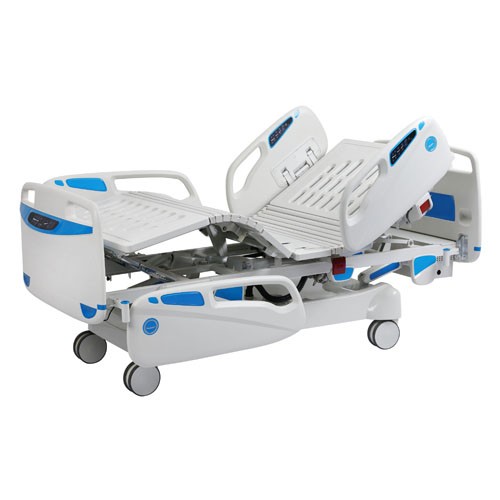

ICU Multi-function Electric Bed
Model No: BDMS01C
SPECIFICATIONS:
MATERIAL: STEEL FRAMEWORK, TOP CLASS ABS
& PP PLASTIC
DIMENSION: 2260mm(L)*1100mm(W)*535mm-720mm
BED BORAD: 1940mm (L)*900mm(W)
NET WEIGHT: 148KGS
LOAD CAPACITY: < 250KGS
CASTOR: Φ150mm universal
(Central Locking).Electronic brake & un-brake
FEATURES:
* With easily operated touching switch,
solve the problem of limited service life of mechanical keypad and keypad
invalid due to constantly operating

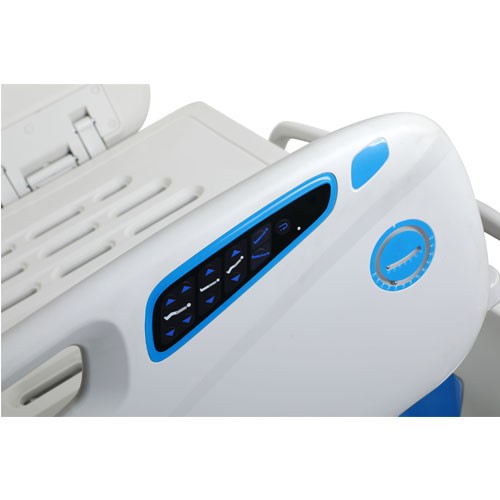

* Insert touching switch in the 2pcs side
rail at the head side, for patient adjust bed posture easily. Also a touching

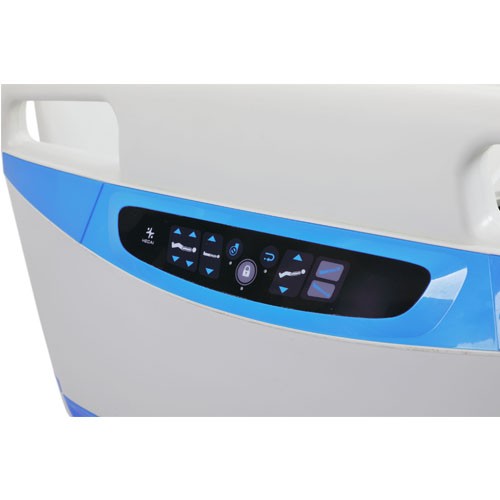

switch system at the foot board,
with Patient Lock-Out system, for nursing
person's operation
* Back-rest (0-65o±5o), Foot-rest (0-40o±5o), Hi-Low(720mm-535mm), Trendelenburg (10o) & Rev. Trendelenburg(10o), all by electrically controlled, with indicator light to show the work status,
Back & Leg linkage movement, back-rest
and leg re-rest can up/down at the same time ,supply convenient operation.

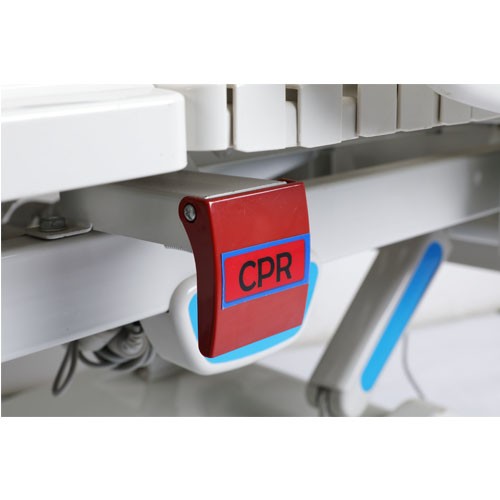

* Quick Release lever on backrest, for
emergency CPR
* With the "reset" button to make
the bed be flat from any position
* Backup Battery, for emergency power
failure
* Detachable head & foot board in PP
plastic, can be fixed when assembled
* 4 pcs drop-down protective railing with
angle indicators, controlled by gas spring
* Bed board with soft connection, make the
bending of the bed board more smooth to let the patient feel more comfortable
when lying in the bed
* Central brake castors, brake and un-brake
controlled by electric operation
* IV pole mount bracket, at 4 corners of
the bed frame
* Standard accessory: I.V. pole
